Site

Site is located near Jaipur, capital of Rajasthan state, northwestern India.It is situated in the east-central part of the state, roughly equidistant from Alwar and Ajmer.

  • Area:2.34 Acres = 9500 sqm

  • Build up area: 2000 sqm

  • Ground Coverage: 40%

  • Occupancy: 3500 members

Concept:

1.Provided courtyard with trees for cooling.

2.Stepwell for evaporative cooling.

3.Maintaining Visual Connectivity in the building.

Courtyards

  • Sunken Courtyard

    Following the trends of Rajasthan we have incorporated step well as a seating area for restaurant there and for people working in office.Its acts like a semi-private space.

  • Buffer Courtyard

    This courtyard acts as a buffer and waiting space for public.This is a public space and not completely shaded.Can have great views from this place while waiting.

  • We gave opportunity for people to work in this shaded place and relax.Can look at the courtyards and other green spaces.

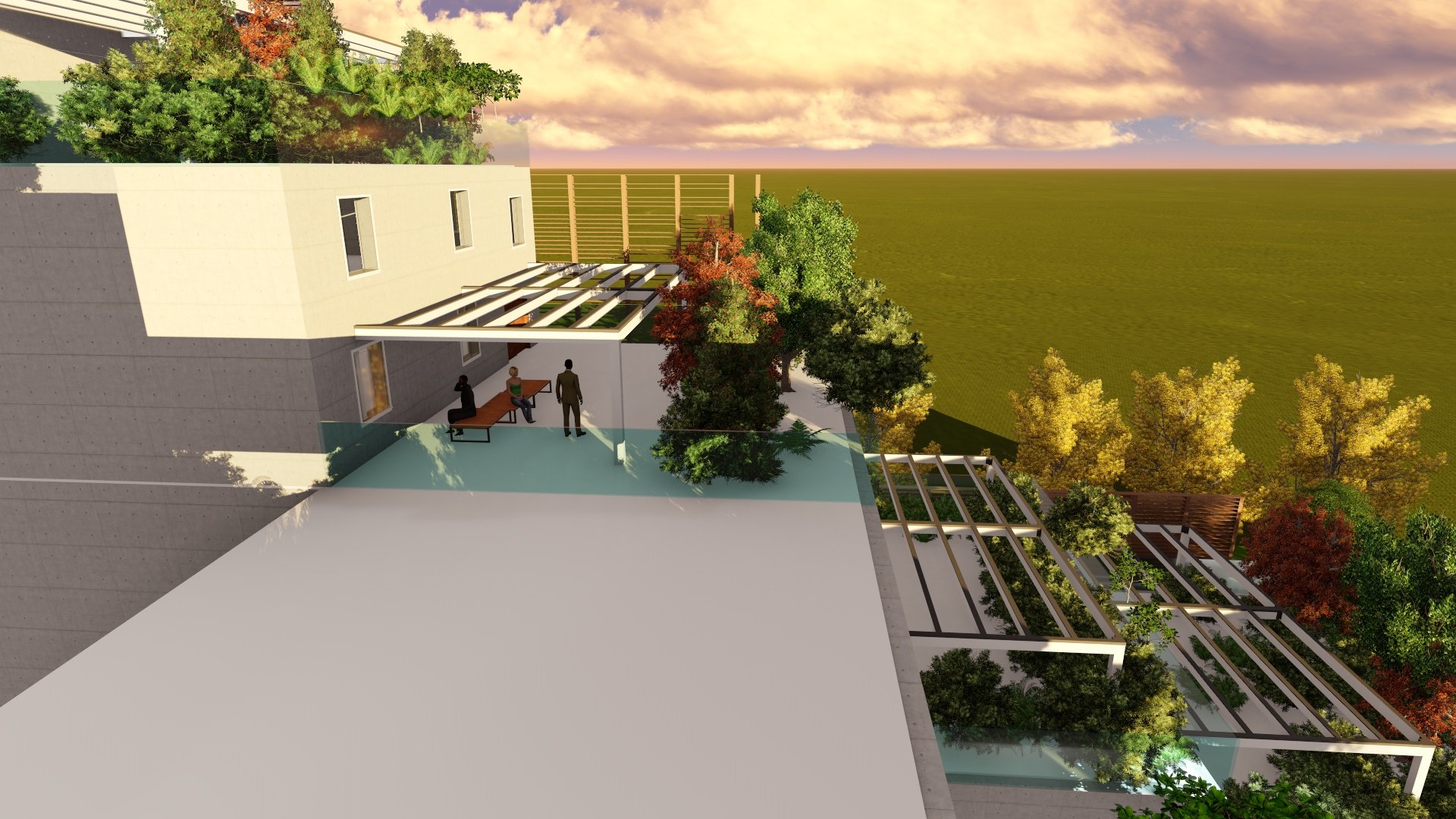

  • Green Terraces are given in every floor which are accessible only for workers in the office and these are shaded.

  • Waiting space for people at the entrance which is shaded by basic plantation.

Facades



Horizontal louvers

These are placed on the west side of the building to define the flow of internal spaces within the building.Other than building walls or partitions, these can be brought in to act as light screens.Partial cover allows unobstructed views of the outside and save us from harsh sun.

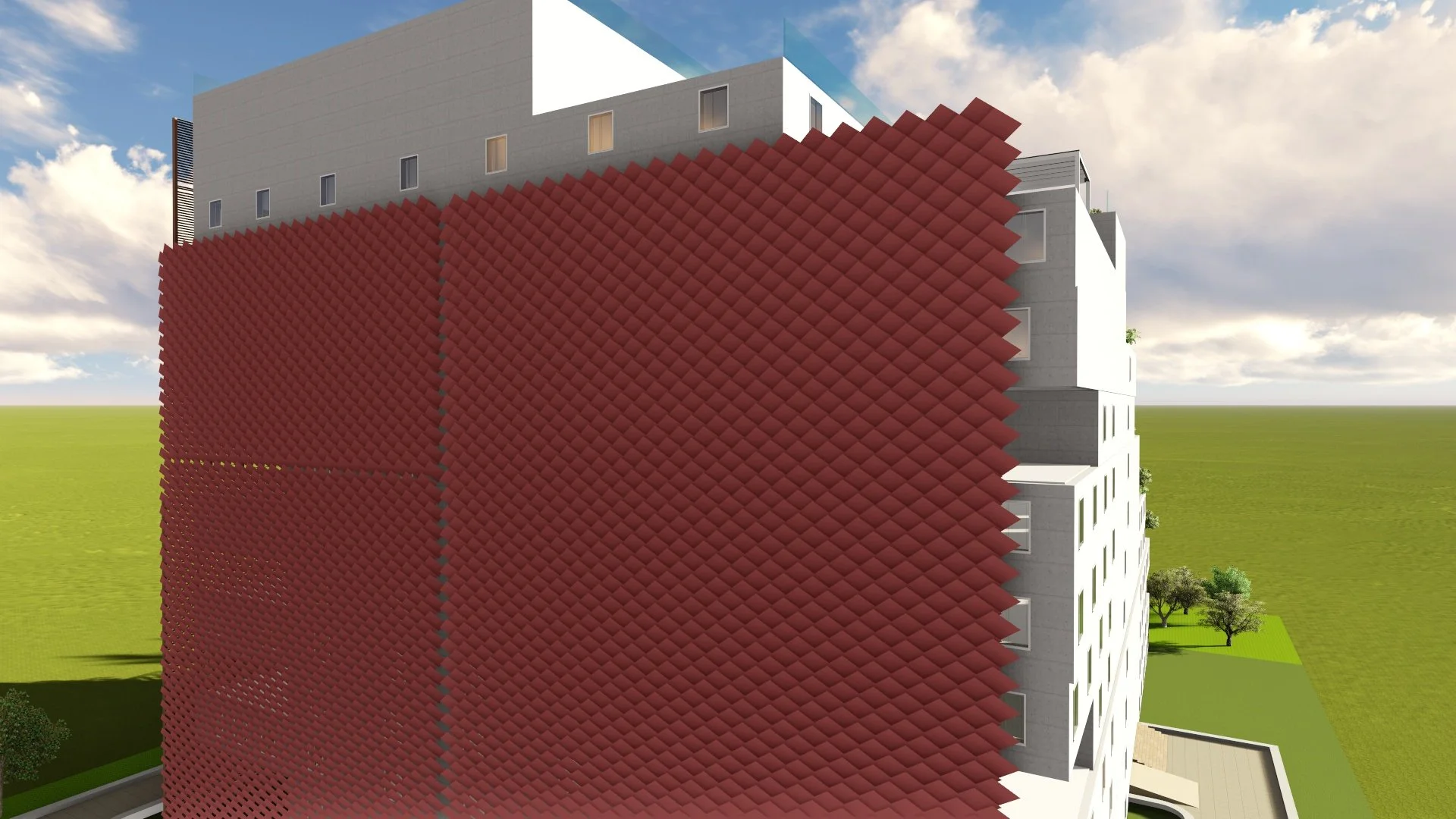

Kinetic Parametric

Terracotta Individual tiles can be mechanically programmed to shade north side of the building.Terracotta material is thinly coated on the surface which is exposed to the sun.
